Ultra Tough 2200 Series
2,200mm High
2,200mm High
| Diameter (mm) | Capacity (litres) |
|---|---|
| 3,700 | 23,655 |
| 5,180 | 46,363 |
| 6,661 | 76,664 |
| 8,141 | 114,517 |
| 10,361 | 185,488 |
| 12,581 | 273,491 |

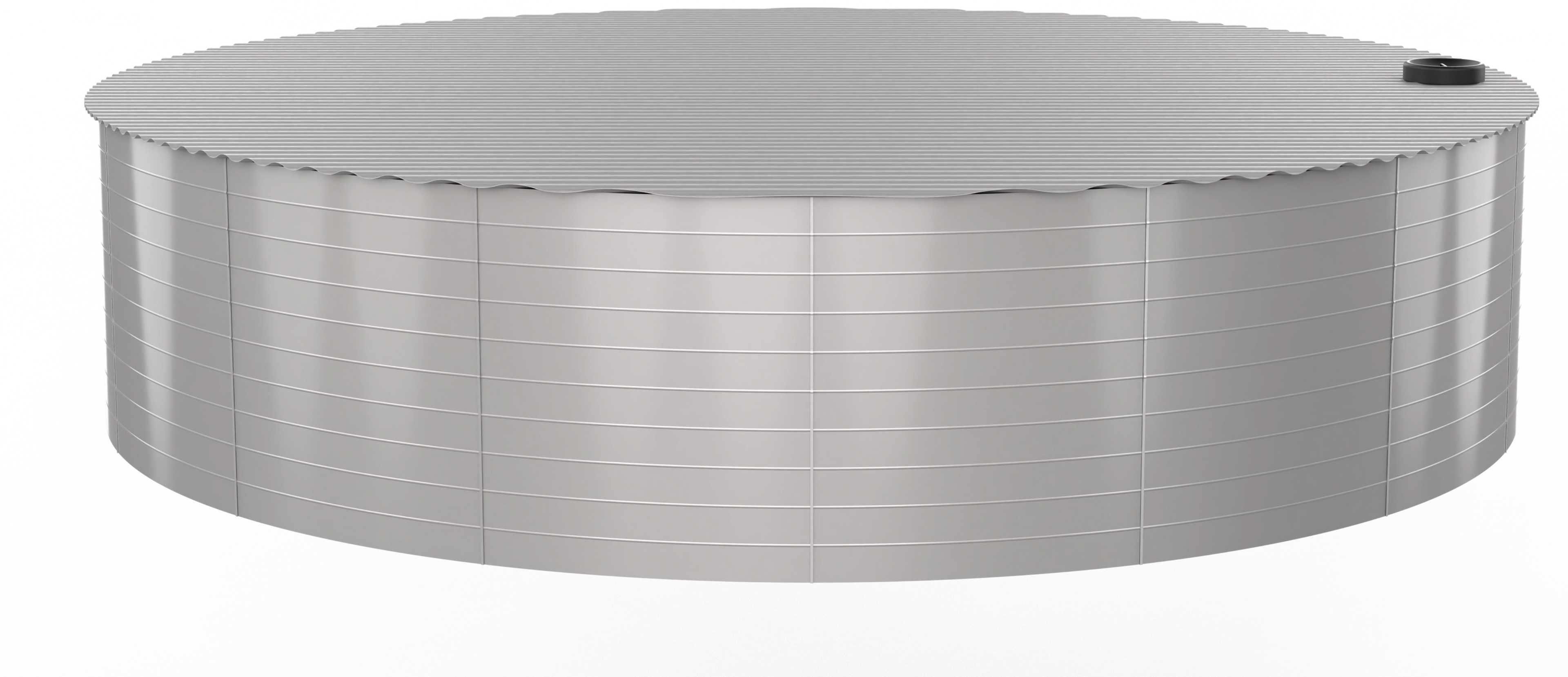

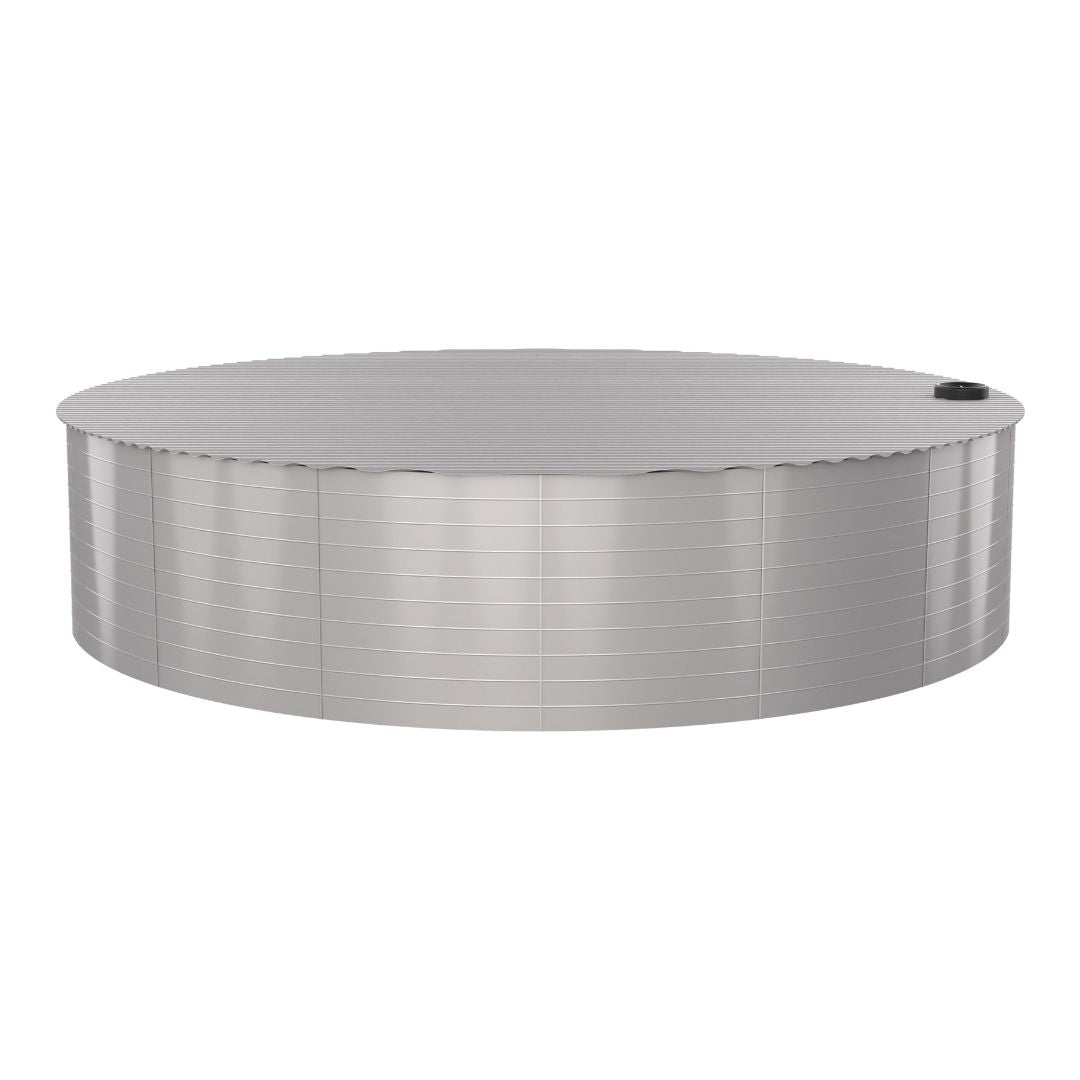

Ultra Tough Tanks
1.2MM ALUZINC STEEL
Superior corrosion resistance
POTABLE LINER
ARMALINER® 680 PVC - 10-year warranty.
GEO TEXTILE UNDERLAY
Adding maximum support and protection to your liner
100% RECYCLABLE STEEL
Better for the environment and built to last.
Choose Your Steel Tank
A wide range of sizes to suit farms, businesses and rural properties.
Ultra Tough 2475 Series
2,470mm High
2,470mm High
| Diameter (mm) | Capacity (litres) |
|---|---|
| 3,700 | 26,611 |
| 5,180 | 52,158 |
| 6,661 | 86,247 |
| 8,141 | 128,831 |
| 10,361 | 208,674 |
| 12,581 | 307,677 |
Ultra Tough 2750 Series
2,750mm High
2,750mm High
| Diameter (mm) | Capacity (litres) |
|---|---|
| 3,700 | 29,568 |
| 5,180 | 57,954 |
| 6,661 | 95,830 |
| 8,141 | 143,146 |
| 10,361 | 231,860 |
| 12,581 | 341,864 |
Capacities are approximate and based on round tanks. See brochure for full details.
DELIVERY & INSTALLATION AREA
We deliver and install steel tanks across eastern Australia, from Mackay in the north to Bega in the south, and from the east coast to Bourke in the west
Zone 1 – Core Area
Bundaberg to Newcastle including Sunshine Coast, Brisbane, Gold Coast, Mid North Coast, Hunter, Dubbo, Nyngan and Mitchell QLD.
Zone 2 – North
Areas north of Bundaberg including Agnes Water, Gladstone, Rockhampton, Yeppoon and Mackay.
Zone 3 – South
Areas south of Newcastle including Sydney, Wollongong, Canberra, Albury and Bega.
* Delivery availability, freight and construction charges may vary by postcode, access conditions and tank sizes.
Prepare Your Tank Pad
A level, stable pad is essential for safe installation, long-term performance and warranty protection.
| Tank Diameter | Min Pad Size | Crusher Dust | Water on Day |
|---|---|---|---|
| 3,700mm | 6.7m | 4 m² | 1,000 L |
| 5,180mm | 8.18m | 5.5 m² | 2,500 L |
| 6,661mm | 9.7m | 7.5 m² | 3,000 L |
| 8,141mm | 11.141m | 10 m² | 3,000 L |
| 10,361mm | 13.361m | 14 m² | 10,000 L |
| 12,581mm | 15.581m | 19 m² | 15,000 L |
WHAT HAPPENS AFTER YOU ORDER?
1 - CONFIRM DETAILS
We confirm your tank, connection points, delivery address and site access.
2 - PREPARE PAD
You prepare the pad to the required specifications.
3 - DELIVERY
Tank components are delivered in up to 2 separate deliveries.
4 - CONSTRUCTION
Our crew constructs your tank onsite in 1-3 days*.
5 - FILL & COMPLETE
Water is added during installation to secure the liner and fittings.
6 - READY TO GO
Your tank is complete and ready for reliable service.
*Subject to weather, site conditions and tank size.
