Description

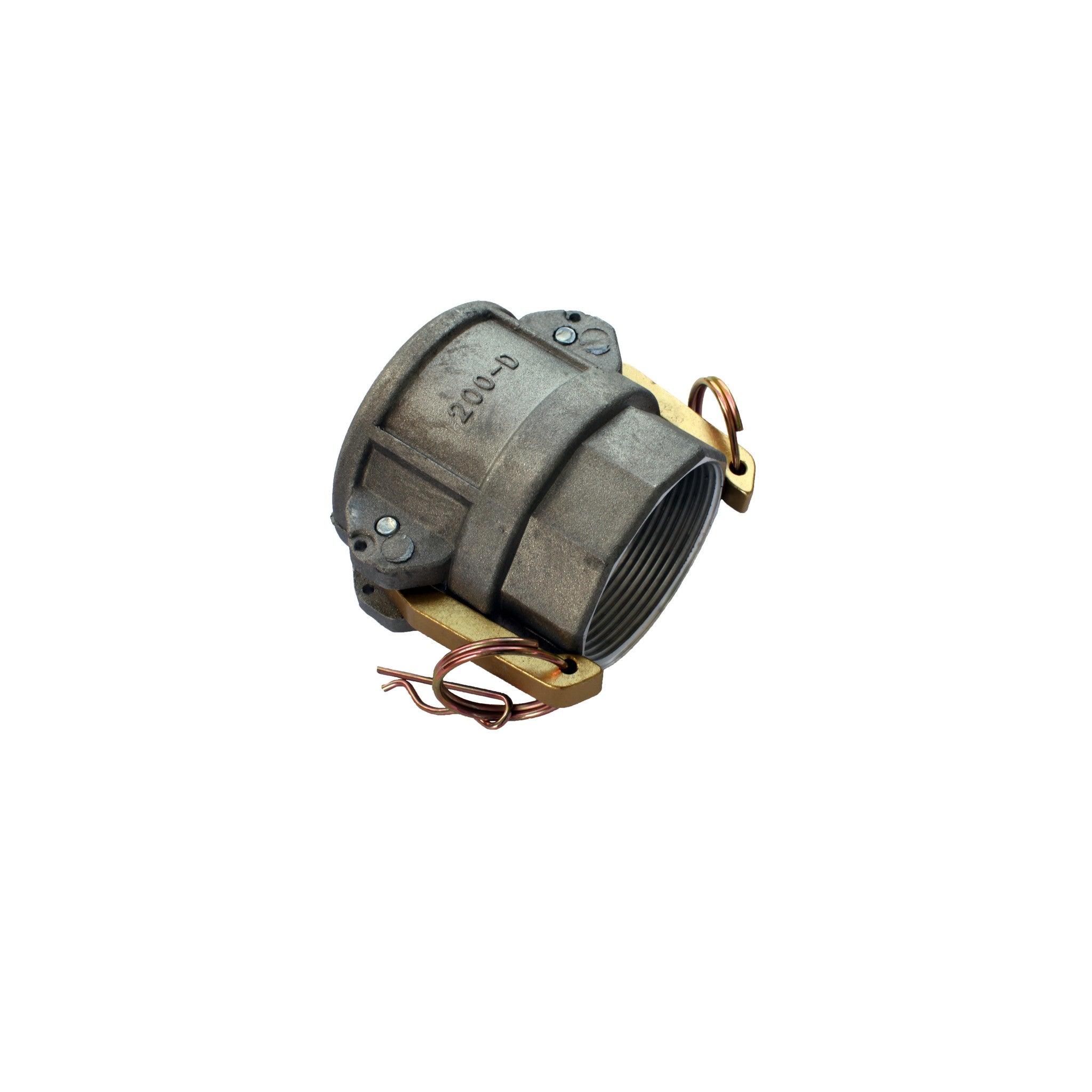

Aluminium Camlock Type D | Female Camlock x Female BSP | 40mm

The Aluminium Camlock Type D is a die-cast aluminium coupler with a female camlock on one end and a female BSP thread on the other. Open the camlock arms, push the male adapter in, and press the arms closed by hand to lock it. The female BSP end then threads onto any male BSP fitting on a pump, pipe, or tank outlet, creating a fast and reliable join between your BSP pipe work and camlock system.

Made to conform to ASTM B26/B26M and Mil Spec A-A 59326, this fitting works across all standard camlock products. It is a useful adapter for irrigation setups, pump connections, bulk water transfer, and general farm and industrial use. The die-cast aluminium body keeps things light and is the most cost-effective aluminium option in the camlock range.

Features

  • Die-cast aluminium body to ASTM B26/B26M for a light, strong build
  • Female camlock to female BSP thread for linking camlock lines to BSP pipe fittings
  • Camlock arm connection - opens and closes by hand, no tools needed
  • ISO 228 threads for a reliable BSP connection
  • Built to Mil Spec A-A 59326 for broad camlock system compatibility
  • Working pressure of 1724kPa for the 40mm size
  • NBR gasket rated to a maximum of 100°C
  • Suits irrigation, pumping, bulk water transfer, and general farm and industrial use

A versatile adapter for connecting camlock hose lines to BSP pump outlets and pipe fittings, this Type D fitting could be a reliable workhorse across many farm and rural setups.

Length

40mm
