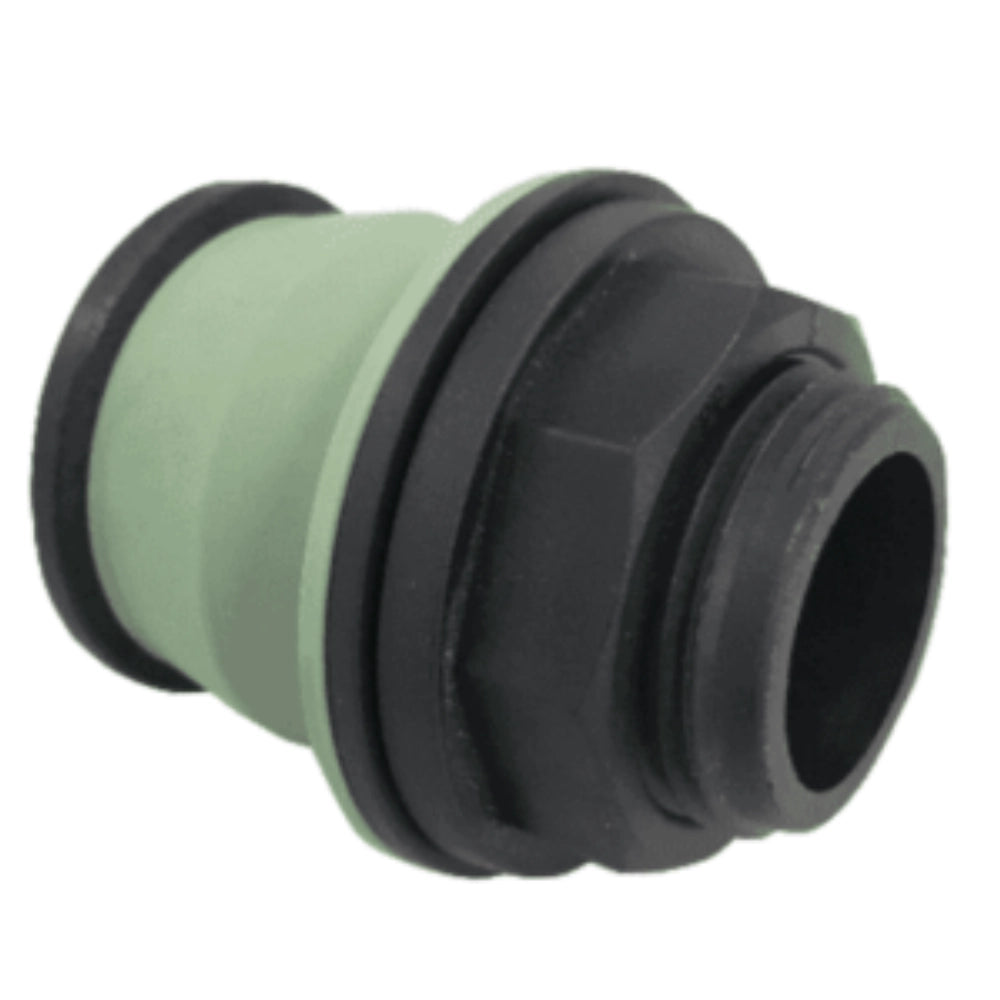

Bucchi Quick Joint Male to Female Adaptor with FPM Gasket
Description
Bucchi Quick Joint Male to Female Tank Adaptor with FPM Gasket for Fuel and Chemicals
Built for tanks holding fuel or harsh liquids, the Bucchi Quick Joint Male to Female Adaptor with FPM Gasket is the tough one of the family. FPM is a fluorinated rubber known for its strong chemical resistance. It handles petrol, oils, hydraulic fluids and many acids. The gasket also copes with heat, with a working range from -30°C to +200°C.

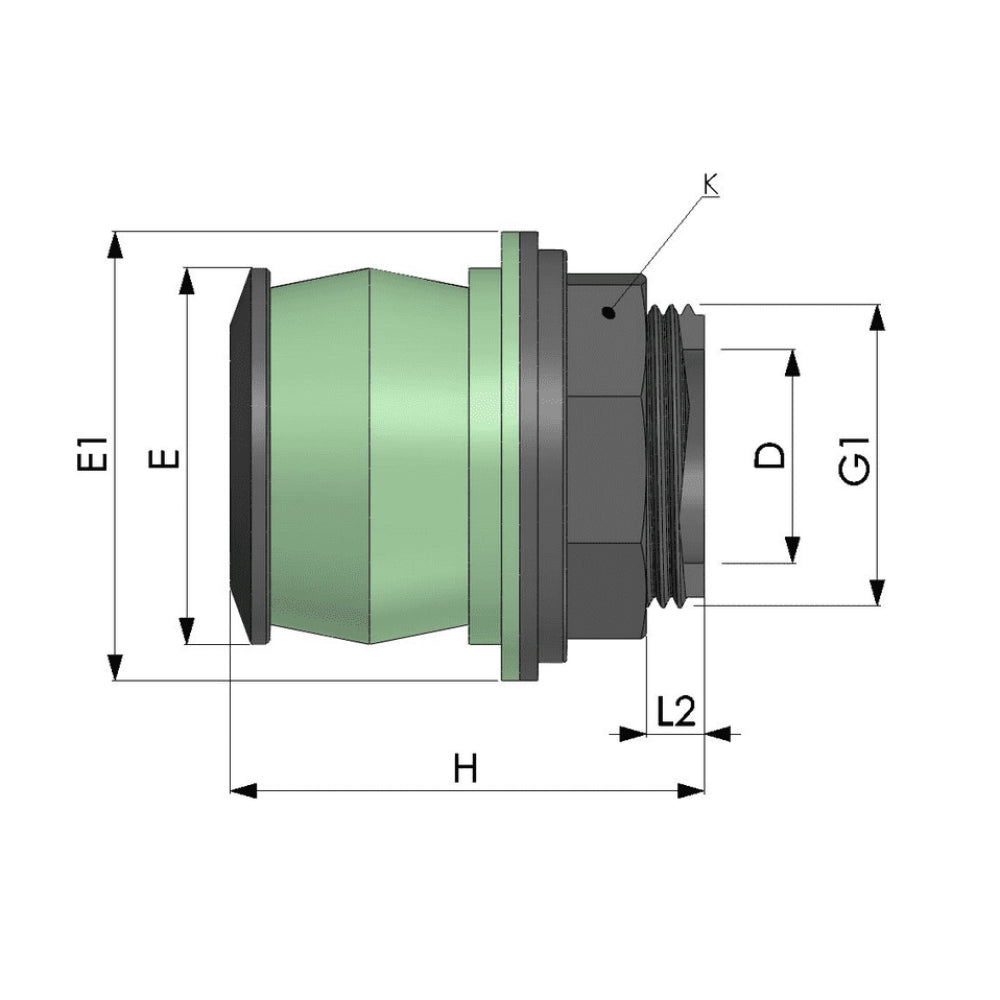

The design pairs a male outer thread with a smaller female inner thread. That female thread can take an internal suction pipe or a male threaded tap. One person can push the fitting into the tank wall from outside. There is nothing to weld, seal or bolt on. It seals on plastic or steel walls between 2mm and 12mm thick, even curved ones. Sizes range from 1/2″ x 3/8″ up to 2″ x 1 1/2″, each rated to 4 bar at 20°C.
Features
- FPM gasket with strong resistance to petrol, oils, hydraulic fluids and acids
- Gasket operating range of -30°C to +200°C
- Male outer thread plus reduced female inner thread for pipes or taps
- Pushes in from outside the tank, a one person job
- Gasket seals against walls of uneven or varied thickness, from 2mm to 12mm
- Six sizes from 1/2″ x 3/8″ to 2″ x 1 1/2″
- Working pressure rating of 4 bar at 20°C
This adaptor could be a solid choice when plumbing an outlet into a diesel or chemical tank.
Additional Information

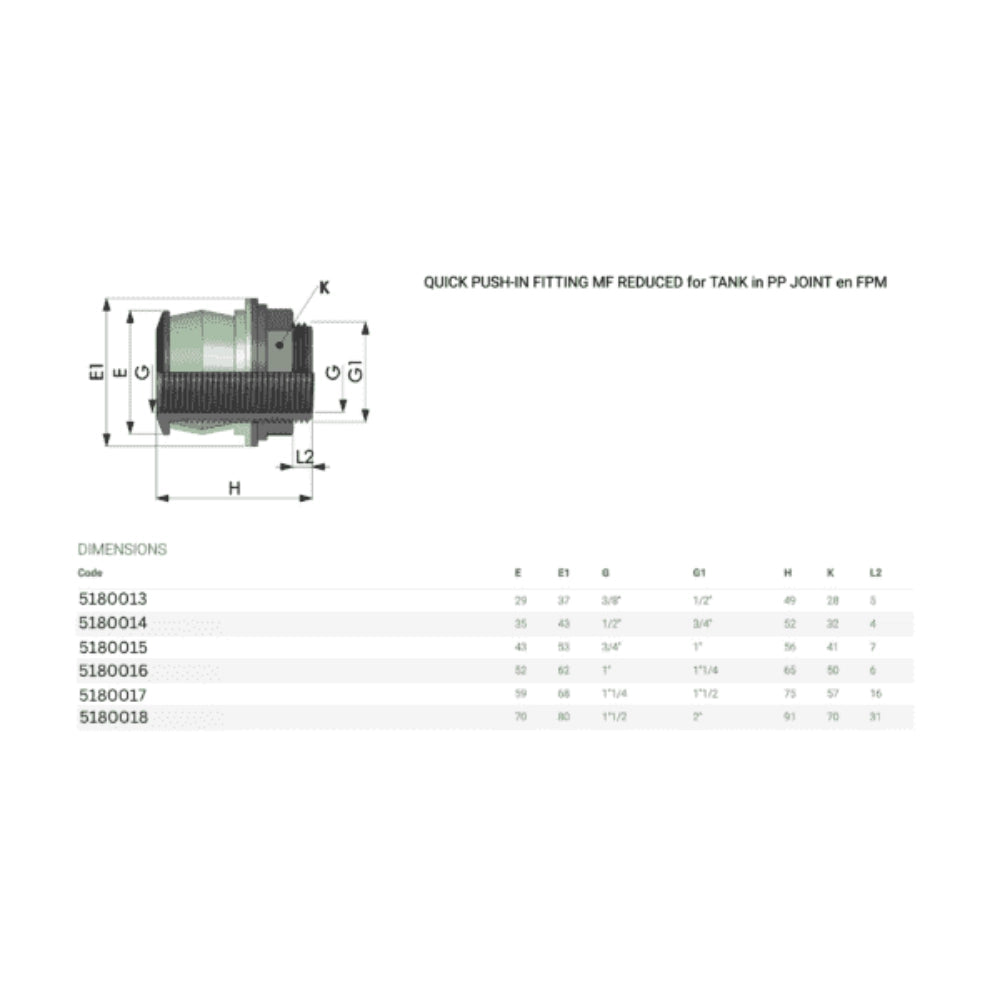

| Size |
1/2" x 3/8", 3/4" x 1/2", 1" x 3/4", 1 1/4" x 1", 1 1/2" x 1 1/4", 2" x 1 1/2" |
|---|
