90 Degree Elbow - Male - Metric

SKU:
Sale price From $9.99 AUD
Size: Choose an option

Pickup available at Toowoomba

Usually ready in 5+ days

11160 - Fittings - 90D Elbow Male Metric x - 32 x 1" - Austral Ag

90 Degree Elbow - Male - Metric

Size: 20mm x 1/2"

Important: Not all items shown online are kept in our Toowoomba store. Many products are dispatched from our warehouse. If you’d like to view or purchase an item in-store, please phone ahead to confirm availability before visiting.

Tax included. Shipping calculated at checkout.
11160 - Fittings - 90D Elbow Male Metric x - 32 x 1" - Austral Ag

90 Degree Elbow - Male - Metric

Description

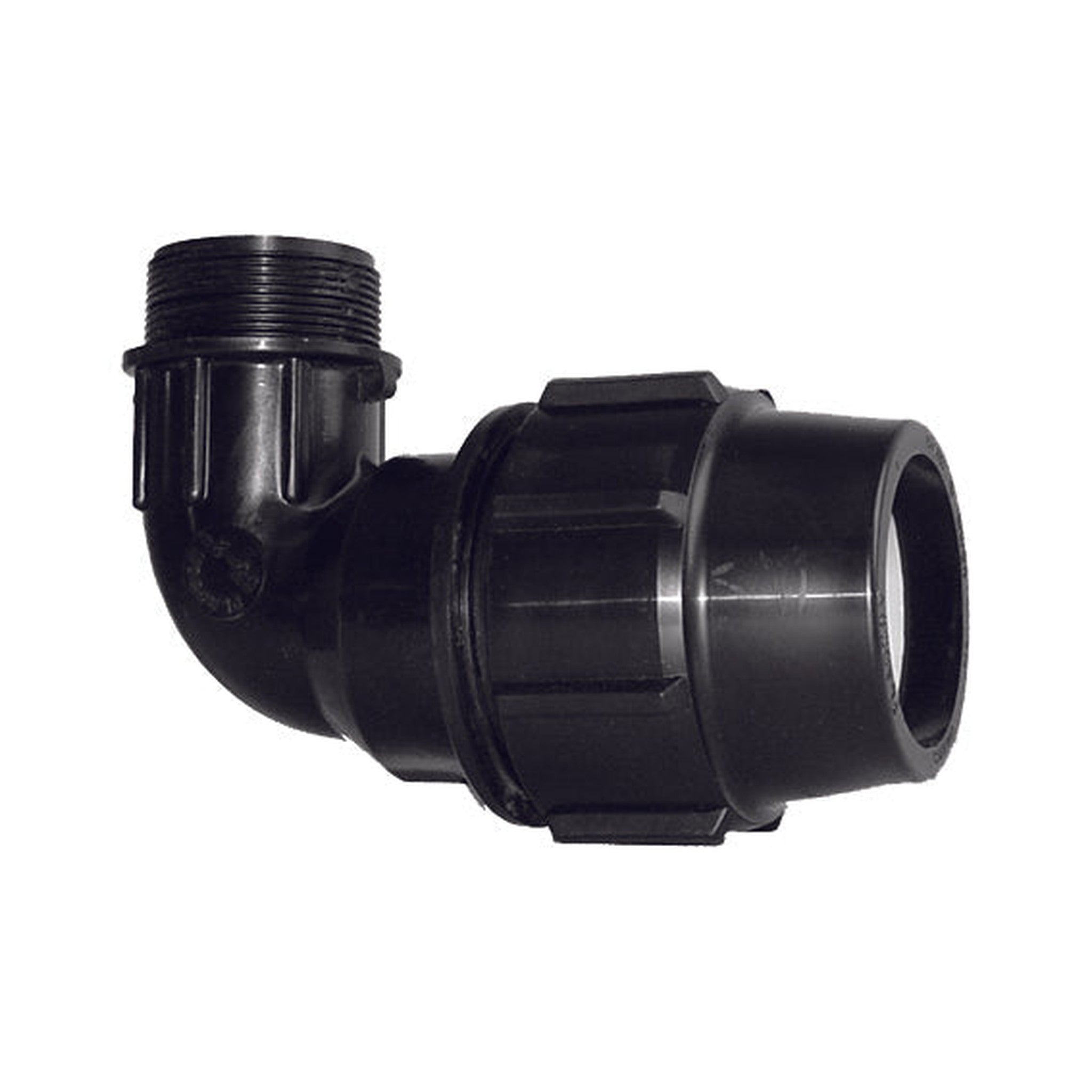

Plasson 90° Elbow with Threaded Male Offtake - Metric Compression - 19 Sizes

This Plasson 90° Elbow with Threaded Male Offtake is a metric compression fitting for PE poly pipe. One end grips the poly pipe using compression. The other end turns 90° and carries a male BSP thread. These elbows could suit pipe runs that need both a direction change and a threaded male outlet.

Nineteen size combinations are stocked, spanning pipe from 20mm up to 110mm. Thread sizes range from 1/2" through to 4". Each fitting has a polypropylene body and an NBR seal. These are rated to PN16 and tested to ISO 17885 for water use.

Features

  • 19 size combinations, pipe from 20mm to 110mm
  • Thread sizes from 1/2" to 4" BSP
  • 90° change of direction with a male threaded outlet
  • Polypropylene body with NBR seal
  • Rated to PN16
  • Tested to ISO 17885 for water use

These elbows could suit farm standpipes, water valve connections, and poly pipe runs needing a 90° turn.

Size

20mm x 1/2", 20mm x 3/4", 25mm x 1/2", 25mm x 3/4", 25mm x 1", 32mm x 3/4", 32mm x 1", 32mm x 1 1/4", 40mm x 1", 40mm x 1 1/4", 40mm x 1 1/2", 50mm x 2", 50mm x 1 1/4", 50mm x 1 1/2", 63mm x 2", 75mm x 2 1/2", 75mm x 3", 90mm x 3", 110mm x 4"
